0564-0

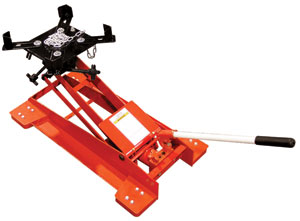

1/2 ton Floor Type Transmission Jack

Lowest height: 8  1/2", Highest High: 24  1/2",

Saddle tilt forward 55 degree,

Saddle tilt  Backward 8 degree,

Saddle tilt Side to Side 30 degree,

Build-in storage rail, Base 30 X 17

qty/lbs : 1/125

0568-0

1 ton Floor Type Transmission Jack

qty/lbs : 1/194

0566-0

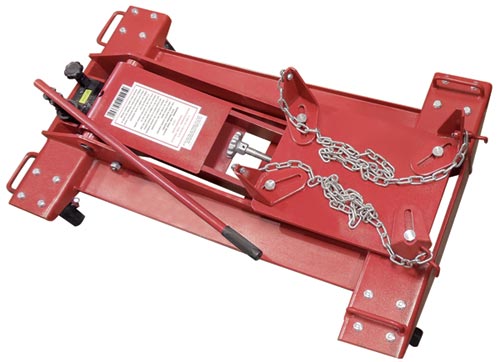

2 ton Floor Type Transmission Jack

Lift Range: Lowest height: 9.06", Highest High: 35.04"

Saddle Size Adj:

Min: 12  9/16 X 7  1/2"         Max: 16  1/2 X 11  7/16"

Saddle tilt forward 10 degree,

Saddle tilt  Backward 10 degree,

Saddle tilt Side to Side +-10 degree,

Chassis Size: 44  3/4 X 26", Caster Size: 4" Dla.

While lifting very heavy objects, the angle to operate handle must be within the limits of 45 degree so as to avoid damaging parts with the rapid increase of the operating force. (Full 360 degree rotating pump handle operates in any position.

qty/lbs : 1/331
